RayZone 2800
Smallest 4*4 MIMO OTA system for 4G LTE & 5G
1. Size : 3.0m * 3.0m * 2.9m
2. DUT Weight : 20kg (Max)
3. Positioner speed : 40°/s (Max)
4. Φ-resolution : 0.5°
5. θ-resolution : 15°
6. Door (h*w) : 1900mm * 700mm
7. Probe Antennas : 1+11 (Dual Pol)
8. RF Connectors : 4 In/Out, 1 Cal, 3 backup
9. Power : AC 220V/110V
10. Functions : 2G/3G/4G/5G SISO, Wi-Fi/WPS/BLE
11. 3D MIMO 4*4 (RTS), 4CC
MieZone 1600
mmWave large phased array antenna measurement
Sourve REconstruction NF-FF Transformation
1. Probe Scannign Precision : ±0.01°
2. DUT Positioning : 0.001mm/±0.01°
3. Freq : 18GHz~80GHz
4. 3D Pattern Fast Meas, Diagnostic Test
5. Appliziton : Large Phased Array Antenna Measurement, AUT size 150cm

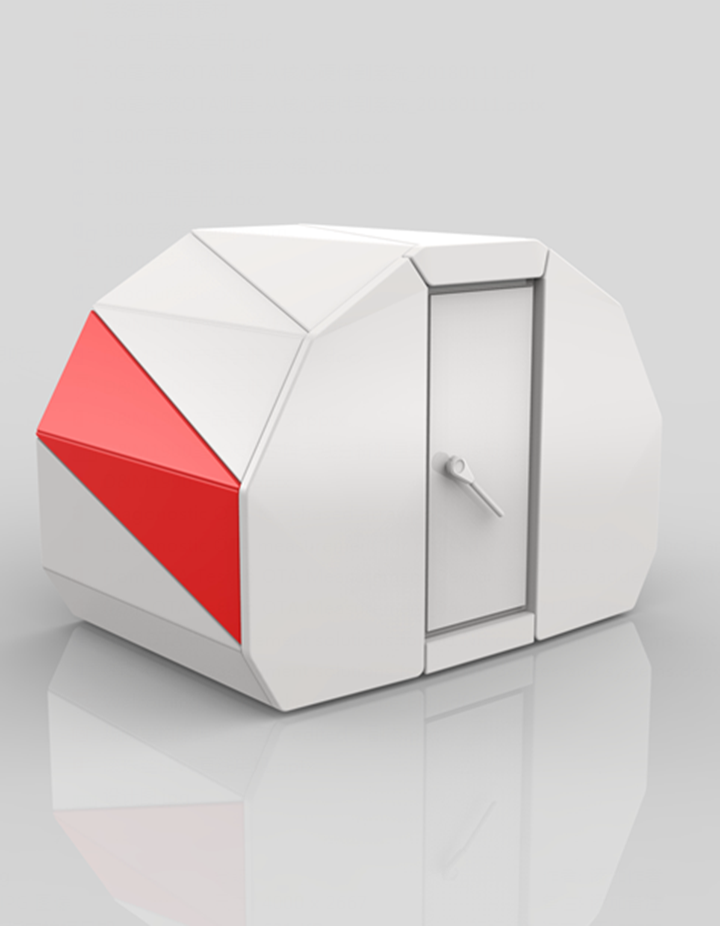

RayBEam 1900
5G base station AAS, mmWave phased array antenna
1. Freq : 26G~40GHz (18G~80G on request)
2. AUT : 5G(AAS), 5G UE
3. Function : EVM, PER, ACLR, SFDR, EIRP, EIS, Beam profiles, side lobes
Single element testing, Single data throughput, Gain, Directivity, Beam width, Diagnostic test
4. NF-FF : Source REconstruction, Spherical Wave Transformation
MW60
AIP OTA Test Box
1. Freq : 26.5 ~ 40GHz, 110GHz (Upgrade on Request)
2. Function : Error Vector Magnitude(EVM), Package Error Ratio(PER), Adjacent Channel leakage Ratio(ACLR),
Spurious Free Dynamic Range(SFDR), -55℃ ~ 125℃ (high-low temperature test Chanmet needed)
AUT size : 5cm * 5cm (AIP size), 30cm * 30cm (Mother Board)
PinProbe OTA Test System for Mass Production
With PinProbe, multi Antenna cna be tested simultaneously.
Moreover, both Wi-Fi and cellular antenna can be tested in one test sation at the same time.
This makes PinProbe very unique.
▶ Comprehensive band & standard coverage : 600MHz~6GHz & 5G NR(FR1), LTE, Wi-Fi
▶ Innovative technology : parallel multi-antenna OTA testing(patented ODC method)
▶ High efficiency : DUT leaded once, tests for multi-antenna and multi-mode can be done
▶ High confidence : test results correlate with TRP test
▶ High reliability : system0level self test & on-line self test
▶ Wide DUT compatibility : suitable for various multi-antenna UEs, cellphone, smart watch, PDA
▶ Customizable design for manufacturing : manual or pneumatic operation etc.
